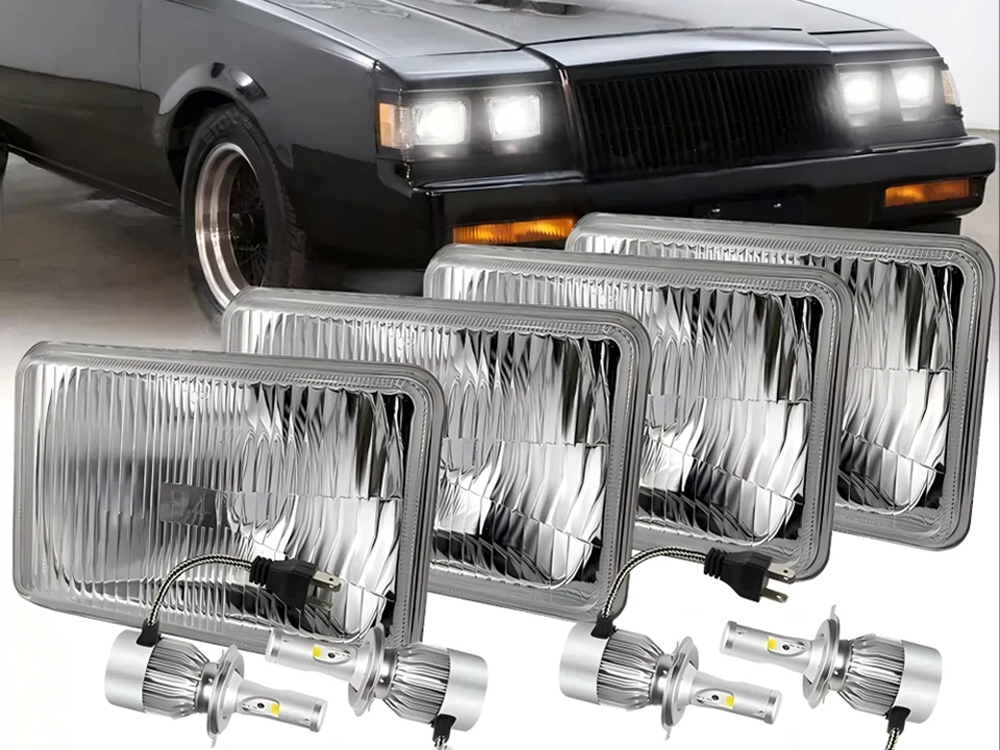

1981-1988 GBody High Output Upgraded LED Head Light Set of 4
This kit will fit every GM car that takes this same size four headlight
system, including all 1981-1988 A-Body and G-Body models.
We have examined several of the various H4 headlight systems available and have found one that closely resembles the original style headlight. The headlight is glass and looks very close to the original glass face of your sealed beam headlight.
The stock sealed beam headlights are 35 watts. These new LED formatted headlights ARE BRIGHT!
Installation Instructions
- Remove the bulb retaining ring from the LED bulb by twisting it, then gently pulling it off.

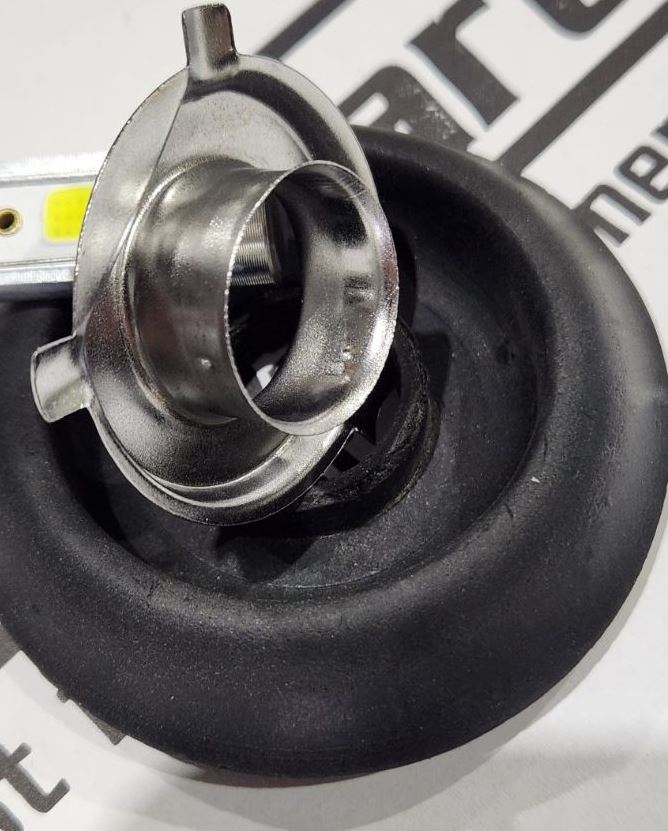

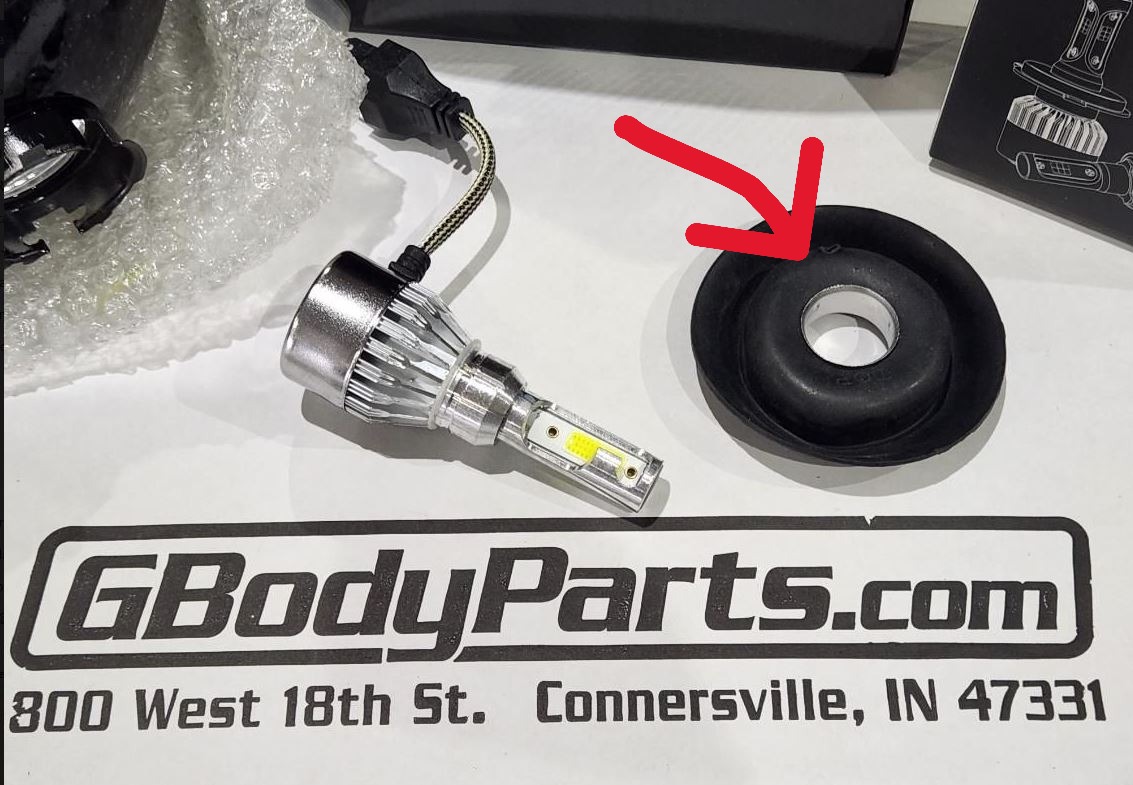

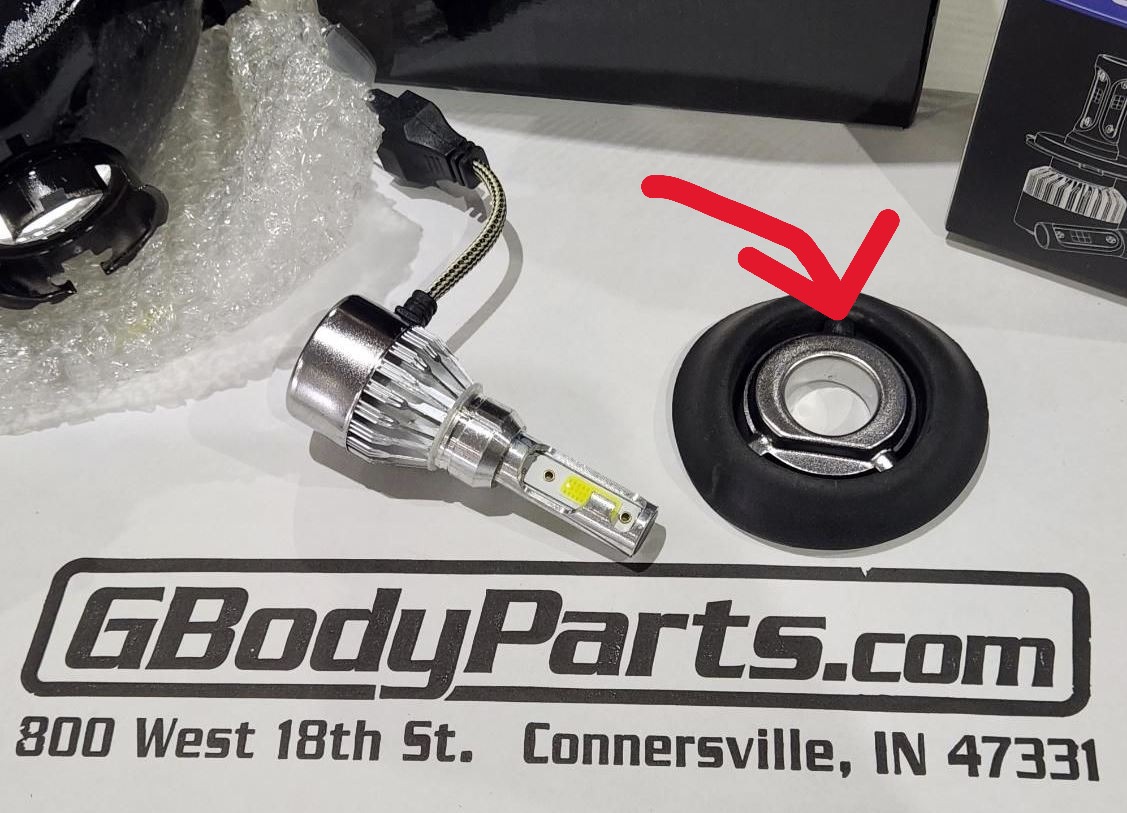

- After removing the bulb retaining plate, insert the retaining ring into the black boot for the headlight. Ensure the side marked "Top" is facing outward. (Photos with the red arrows)
- Once the retaining ring is inserted into the black boot, pull the boot inside out. Then place it onto the headlight housing.

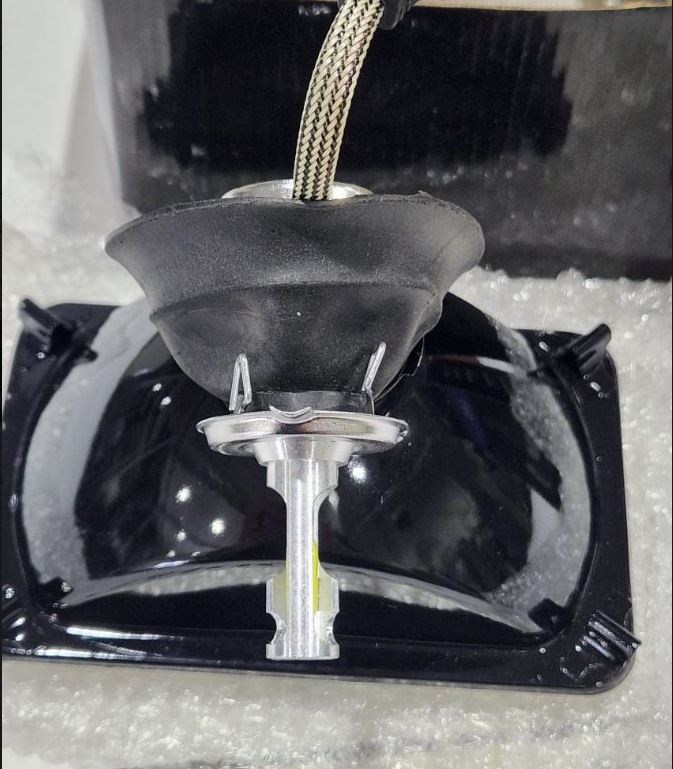

- Install the wire retainer around the bulb and latch it into the headlight housing.

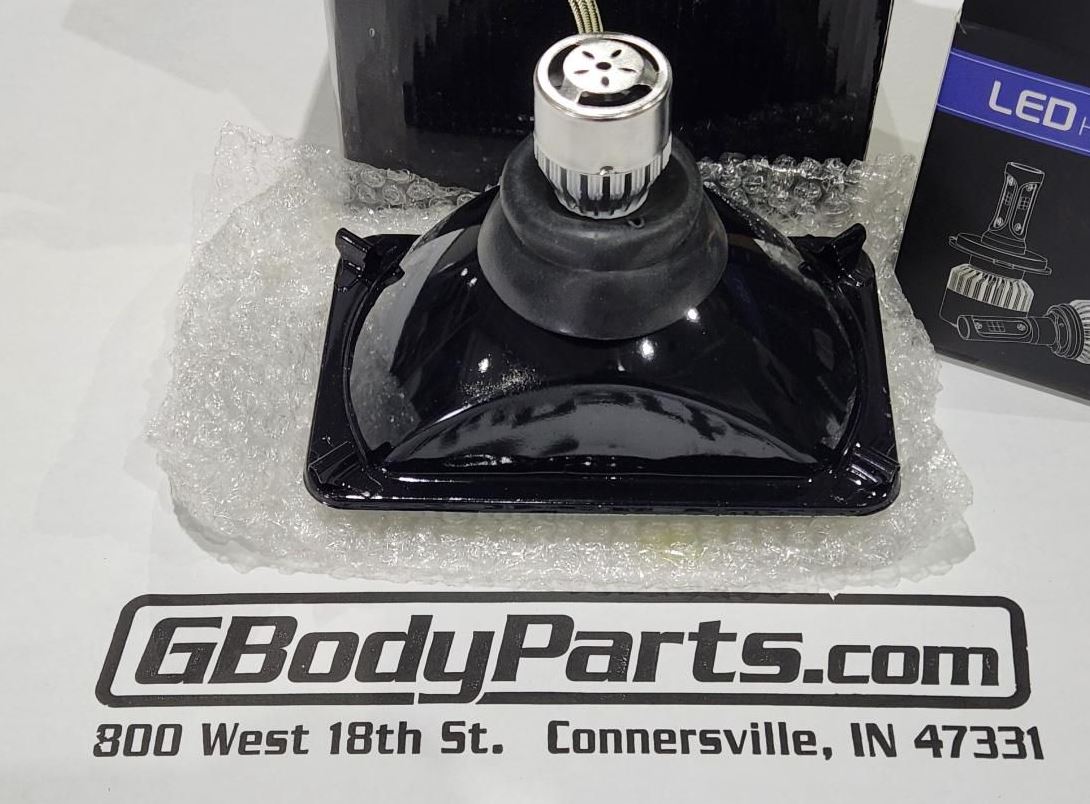

- Once latched into the housing, pull the black boot down into place.

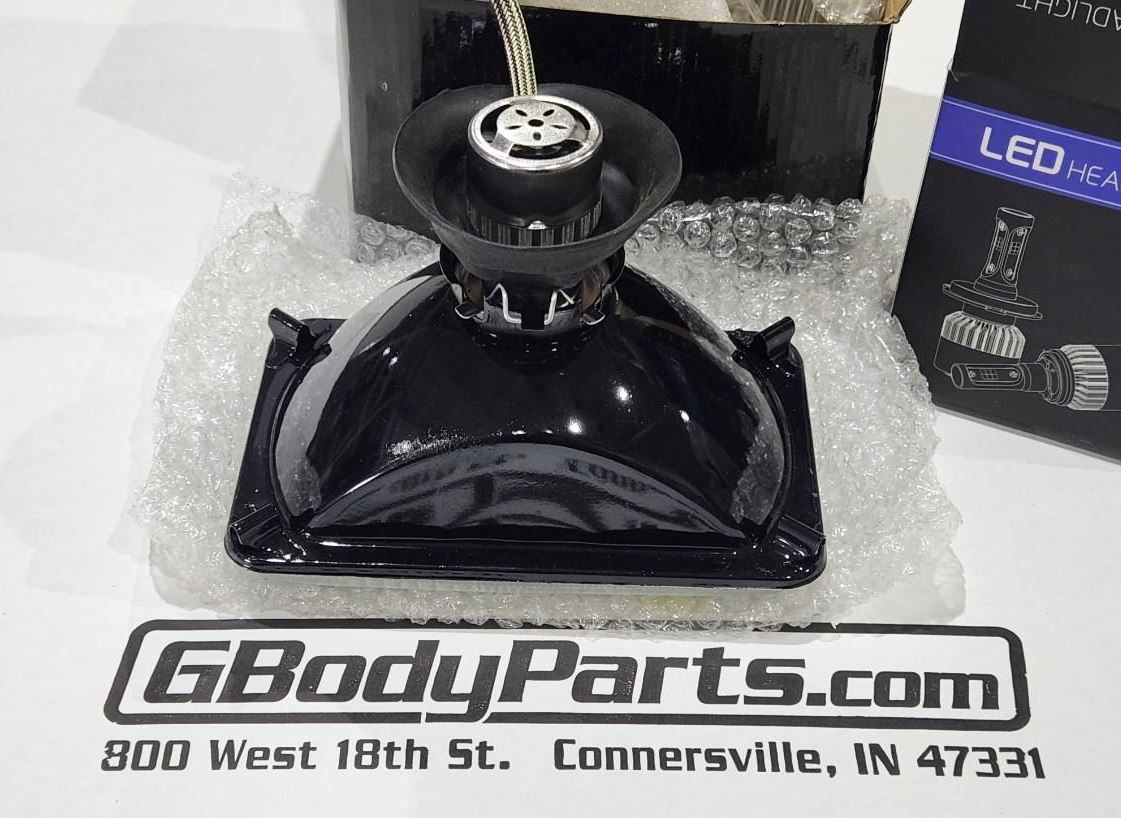

- Insert the bulb into the boot/housing, then press and twist to secure it.
- Make sure the bulb is locked firmly into place.
Please Note:
Do not press on back of bulb while performing the installation.
This kit includes pads designed to be placed between the headlight and the headlight bucket to ensure proper fitment.
